CTP-H03598  3.5-Inch Capacitive Touchscreen I2C Interface GT1151QM

This model features an advanced 3.5-inch Capacitive Touchscreen that redefines precision and durability for compact display applications. Although the diagonal measurement indicates a 3.0-inch active area, the overall assembly utilizes a generous cover plate with dimensions of 141.35 mm in length, ensuring a sleek and modern aesthetic. This 3.5-inch Capacitive Touchscreen integrates the reliable GT911 control chip, supporting multi-touch functionality to enable intuitive gestures such as swiping, pinching, and tapping. The interface employs a standard I2C connection via a 6-pin FFC connector, guaranteeing seamless integration with a wide range of embedded systems and host devices.

Built with a G+G (Glass-Glass) manufacturing process, this 3.5-inch Capacitive Touchscreen offers exceptional structural integrity. The surface features a 6H hardness rating, providing robust protection against scratches and everyday wear, making it suitable for industrial controls and consumer electronics alike. With a light transmittance of ≥85%, this 3.5-inch Capacitive Touchscreen delivers vivid clarity and high visibility, ensuring that underlying displays remain bright and legible under various lighting conditions. The large cover plate design not only enhances the durability of the 3.5-inch Capacitive Touchscreen but also allows for a seamless, edge-to-edge installation. Whether utilized in smart home devices or portable instrumentation, this model combines responsive touch accuracy with a rugged, optically superior construction.

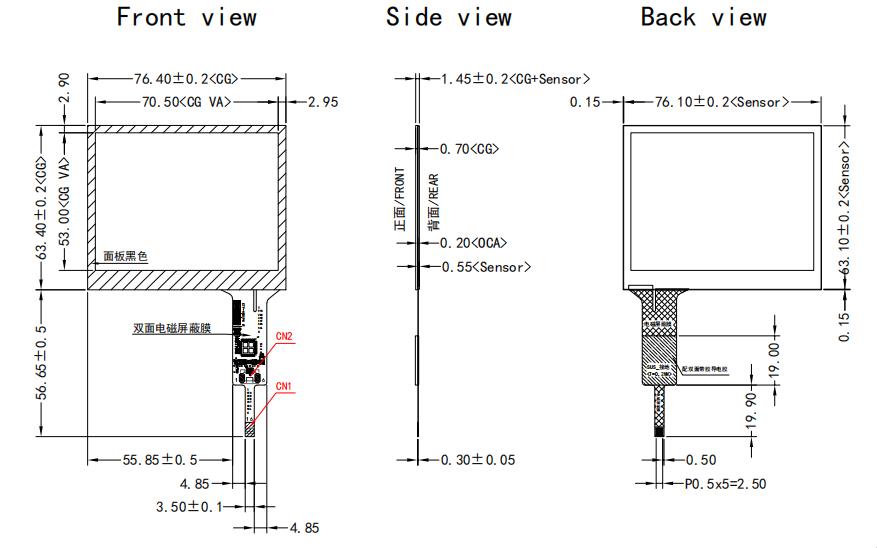

Specification of 3.5-Inch Capacitive Touchscreen
